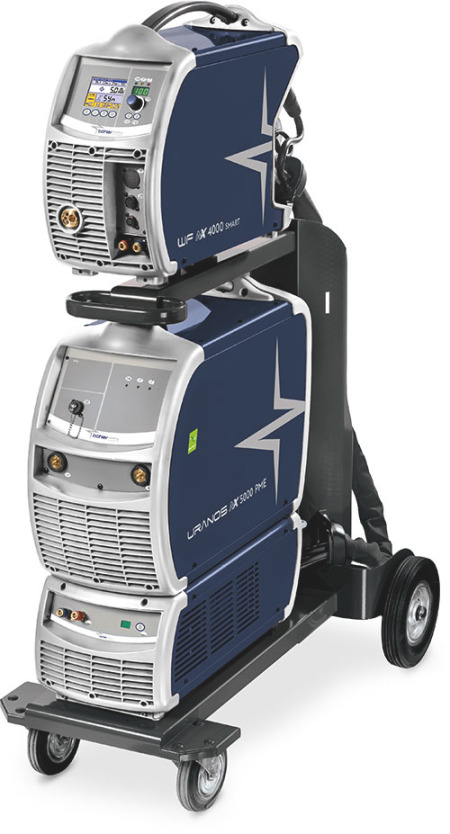

With features such as a full colour display with a highly intuitive user interface, an intelligent power system that ensures the most precise welding arc, or the ability to tailor NX welding machines to specific welding tasks with myNX, Böhler Welding unites the competence and experience of 40 years in welding equipment development.
| General | |
|---|---|
| Welding processs | MIG/MAG - PULSED MIG/MAG - MMA - TIG DC Lift |
| Materials | Carbon steels - Stainless Steels - Duplex Steels - Aluminum - Copper - Hardfacing |
| Dimensions | 690x290x510mm |
| Weight | 38.5 kg |
| Power supply | |
| Voltage (50/60 Hz) | 3x400/230V±15% |
| Maximum input power | 22.9/23.9 kVA |
| Maximum input current | 33.0/61.5 A |
| Power factor PF | 0.95 |
| Efficiency | 88% |
| Slow blow line fuse | 30/63 A |
| Open circuit voltage | 73Vdc |
| IP protection rate | IP23S |
| Insulation class | H |
| Power supply cable | 4x4mm2 - 5 m |
| Welding | |
| Adjustment range | 3-500A |
| Duty cycle MIG/MAG - 40 °C |
50% - 500A |
|
Duty cycle
MIG/MAG - 25 °C
|
80% - 500A
100% - 470A
|
| Ø Wire diameter | 1.0-1.2 mm (opz 0.6-1.6) |
| Ø Fluxcoredwire | 0.9 - 1.6 mm |
| Ø Aluminumwire | 0.8 -1.6 mm |
| Wire speed | 0.5 - 22.0 m/min |
| N° rolls | 4 (2 WF NX 2000) |
| Wire spool diameter | Ø 200/300mm (200 mm WF NX 2000) |
| Remote Control compatible | yes |
| Welding programs | 600 |
| Personalized programs | 240 |
| U/D MIG/MAG torch compatible | yes |
| PUSH PULL torch compatible | yes |
