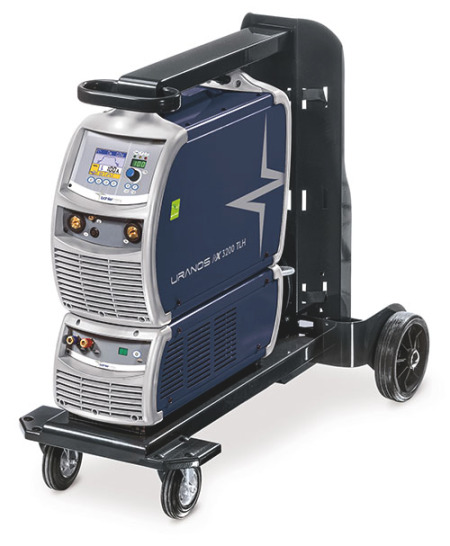

With features such as a full colour display with a highly intuitive user interface, an intelligent power system that ensures the most precise welding arc, or the ability to tailor NX welding machines to specific welding tasks with myNX, Böhler Welding unites the competence and experience of 40 years in welding equipment development.
| General | |
|---|---|
| Welding processs | TIG DC HF - TIG DC Lift - MMA |
| Materials | Carbon steels - Stainless Steels - Cast irons - Copper - Titanium |
| Dimensions | 620x240x460mm |
| Weight | 26.0 kg |
| Power supply | |
| Voltage (50/60 Hz) | 3x400/230V±15% |
| Maximum input power | 13.0/13.3 kVA |
| Maximum input current | 18.8/32.9 A |
| Power factor PF | 0.95 |
| Efficiency | 85 % |
| Slow blow line fuse | 15/25 A |
| Open circuit voltage | 75Vdc |
| IP protection rate | IP23S |
| Insulation class | H |
| Power supply cable | 4x4mm2 - 5 m |
| Welding | |
| Adjustment range | 3A-320A |
| Duty cycle TIG - 40 °C |
40% - 320A 60% - 300A 100% - 270A |
|
Duty cycle
TIG - 25 °C
|
65% - 320A
100% - 260A
|
|
Personalized programs
|
240 |
|
U/D TIG Torch compatible
|
yes
|
|
Remote control compatible
|
yes |
