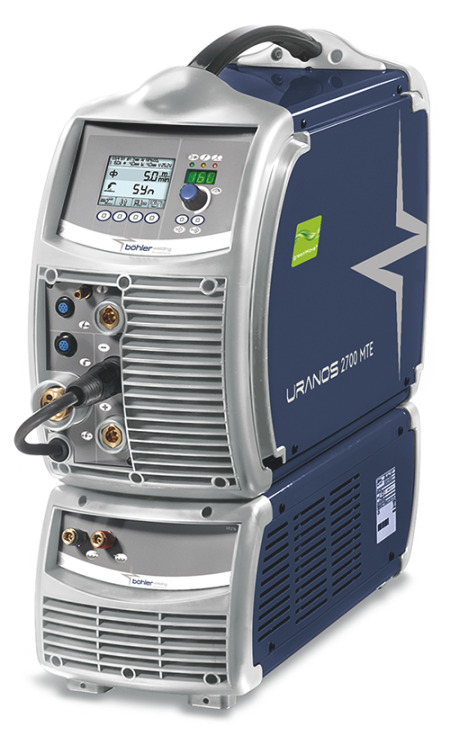

URANOS NX 2700 MTE

The URANOS NX 2700 MTE power sources offer the perfect combination of advanced digital control and exceptional ease of use, and guarantee top quality, welding results. They are capable of meeting the welding requirements of any field application. The wealth of technological functions and solutions make it a valued product in all application areas where accurate and high quality welding is required.

MIG/MAG - Pulsed MIG/MAG - TIG DC HF - MMA
Three-phase supply 3x230V – 3x400V
greenWave® inverter technology
Built-in wire feeder unit
9 proprietary welding processes by Böhler Welding
3.5" Color LCD user panel
270A@45% (40 °C)
25 kg

Customers like it because:

Documents

Data Sheet

General
Welding processs	MIG/MAG - PULSED MIG/MAG - MMA - TIG DC HF - TIG DC Lift
Materials	Carbon steels - Stainless Steels - Aluminum - Copper
Dimensions	620x270x460mm
Weight	25.0 kg
Power supply
Voltage (50/60 Hz)	3x400/230V±15%
Maximum input power	9.1/9.1 kVA
Maximum input current	13.1/22.8 A
Power factor PF	0.94/0.96
Efficiency	88/86 %
Slow blow line fuse	16/20 A
Open circuit voltage	92Vdc
IP protection rate	IP23S
Insulation class	H
Power supply cable	4x2.5mm² - 5 m
Welding
Adjustment range	3-270A
Duty cycle MIG/MAG - 40 °C	45% - 270A 60% - 250A 100% - 230A
Duty cycle MIG/MAG - 25 °C	100% - 270A
Ø Wire diameter	1.0-1.2 mm (opz 0.6-1.6)
Ø Fluxcoredwire	0.9 - 1.6 mm
Ø Aluminumwire	0.8 -1.6 mm
Wire speed	0.5 - 22.0 m/min
N° rolls	4
Wire spool diameter	Ø 200/300mm
Welding programs	600 (max.)
Personalized programs	240
U/D TIG Torch compatible	yes
Digital TIG Torch compatible	yes
U/D MIG/MAG torch compatible	yes
PUSH PULL torch compatible	yes
Remote Control compatible	yes

Applications
- Light job shop fabrication
- Building sites
- Shipyards
- Plants machinery construction
- Automobile industry
- Railway industry
- Food industry
- Chemical industry
- Repair and overhaul
- Workshops
- Sheet metal working
Technicalities
- greenWave inverter technology for high energy efficiency and perfect control over all welding phases
- Heavy duty and enviromental conditions, high service life
- CAN fieldbus digital communication protocol system (very high speed and high reliability digital communication)
- Software based controls can be upgraded as new features become available
- Reduced dimensions and compact construction
- High temperature, shockproof, abrasion resistant plastic case
- Air flow ducting and fully encapsulated PC board to avoid dust contamination
- Linear controlled fan on demand
- Energy-saving inverter technology (built-in P.F.C. - power factor controller)
- Built-in wire feeder unit (2/4 rolls drive)
- Fully internally designed wire drive unit
- Ø 200/300 mm wire spool compatible
- Welding polarity switch device
- Full digital and user-friendly LCD graphic display control panel
- Welding parameters digital display
- Last job settings auto-storage at switch-off
- User-defined welding program storage capability (64 free memory locations)
- Totally programmable user interface
- Programmable welding operations safety limits
- Lock-unlock function key protected by password
- Ideal for stick welding with multiple types of popular electrodes
- Built-in adjustable arc control features (hot start, arc force, antisticking)
- Synergic setting for optimal stick welding with all types of electrodes
- Precise arc striking and high stability arc
- 2/4 step operating mode
- Arc dynamic adjustment
- Perfect arc ignition (soft start - motor slope)
- Burn-back and droplet detachment correction
- Crater filler operating mode
- Synergic operations from databank (60 pre-set programs)
- Wire speed (0,5-22,0 m/min), amperage and piece thickness adjustment
- Spot welding mode
- Intermittent welding mode
- MIG/MAG bilevel
- Up/Down torch compatible (welding current adjustment)
- Digital TIG torch compatible
- Smart slope control
- Euro adaptor - U/D MIG/MAG torch compatible
- Digital MIG/MAG torch compatible
- Push-pull torch device
- Remote control compatible
- WU cooling unit compatible
- Controlled cooling operations
