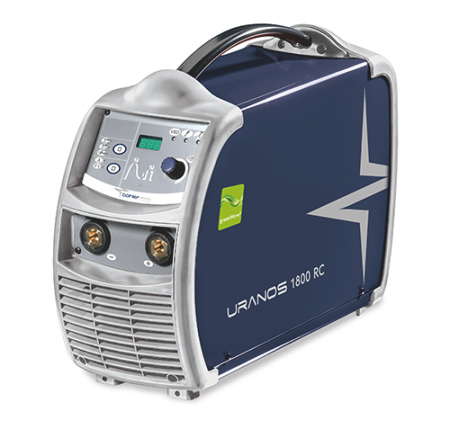

URANOS 1800 RC

URANOS 1800 RC is an inverter power source for TIG DC Lift and electrode (MMA) welding. Due to the mulitude of functions and technical solutions, this product is designed for high quality and precise welding applications such as in the case of stainless steel.

  • MMA – TIG DC Lift
  • Single-phase 1x115V - 1x230V
  • greenWave® inverter technology
  • Lightweight and professional
  • 170A@35% (40 °C)
  • 9.0 kg
  • General
    Welding processs MMA - TIG DC Lift
    Materials Carbon steels - Stainless Steels - Cast irons - Aluminium
    Dimensions 410x150x330 mm
    Weight 9.0 kg
    Power supply
    Voltage (50/60 Hz) 1x230V/115±15%
    Maximum input power 23.3/28.5 A
    Maximum input current  28.7A
    Power factor PF 1
    Efficiency 85%
    Slow blow line fuse 16/20 A
    Open circuit voltage 80Vdc
    IP protection rate  IP23S
    Insulation class H
    Power supply cable 3x2.5mm2 - 2m
    Welding
    Adjustment range 3A-170A
    Duty cycle
    MMA - 40 °C
    35% - 170A
    60% - 150A
    100% - 120A
    Duty cycle
    MMA - 25°C
    70% - 170A
    100% - 150A
    VRD function
    yes
    Remote Control compatible yes

    • Light job shop fabrication
    • Medium-heavy job shop fabrication
    • Building sites
    • Shipyards
    • Plants machinery construction
    • Oil refinery plants construction
    • Repair and overhaul
    • Handicraft working
    • Vehicle bodywork repair
    • Building
    • Plumbing
    • Installers
    • Blacksmiths
    • Electricians
    • Tinsmiths
    • greenWave inverter technology for high energy efficiency and perfect control over all welding phases
    • Heavy duty and enviromental conditions, high service life
    • Reduced dimensions and compact construction
    • CAN fieldbus digital communication protocol system (very high speed and high reliability digital communication)
    • Software based controls can be upgraded as new features become available
    • High temperature, shockproof, abrasion resistant plastic case
    • Air flow ducting and fully encapsulated PC board to avoid dust contamination
    • Linear controlled fan on demand
    • Excellent performances also with long power supply extension cables
    • Energy-saving inverter technology (built-in P.F.C. - power factor controller)
    • Full digital and user-friendly control panel
    • Welding parameters digital display
    • Last job settings auto-storage at switch-off
    • Ideal for stick welding with multiple types of popular electrodes
    • Built-in adjustable arc control features (hot start, arc force, antisticking)
    • Synergic setting for optimal stick welding with multiple types of electrodes
    • Reduced electromagnetic interference with lift start TIG welding
    • Remote control compatible
    • Current socket (panel) 50/70mm²
