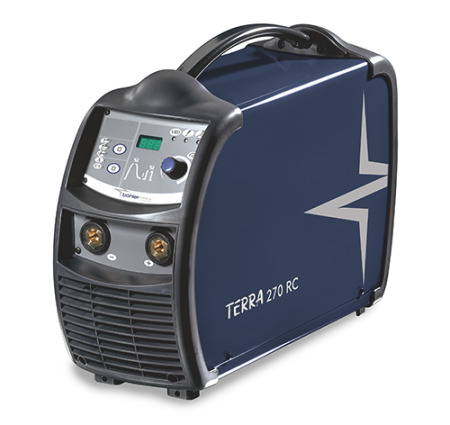

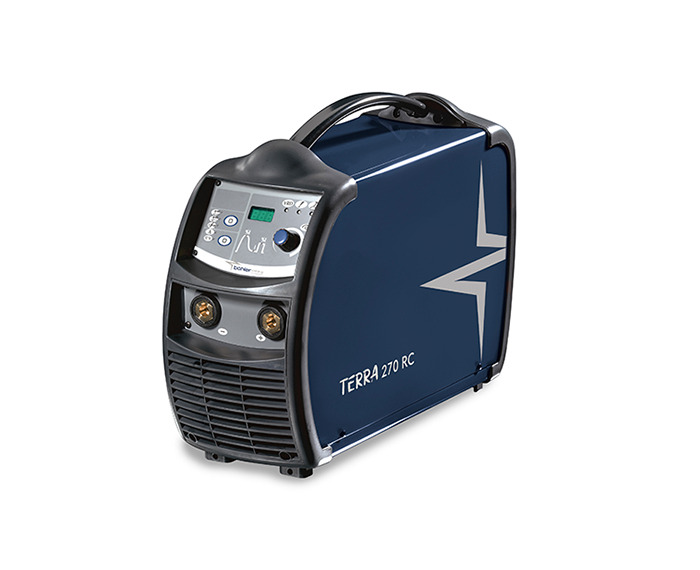

The TERRA 270 RC is robust and reliable three phase power source for TIG DC Lift and electrode welding. This arc generation is based on tried and tested inverter technology, and dimensions are particularly compact thanks to the Three-Level® power platform.
| General | |
|---|---|
| Welding processs | MMA - TIG DC Lift |
| Materials | Carbon steels - Stainless Steels - Cast irons - Aluminium |
| Dimensions | 510x190x400 mm |
| Weight | 16.1 kg |
| Power supply | |
| Voltage (50/60 Hz) | 3x400V±15% |
| Maximum input power | 14.0 kVA |
| Maximum input current | 20.2A |
| Efficiency | 85% |
| Slow blow line fuse | 16A |
| Open circuit voltage | 70Vdc |
| IP protection rate | IP23S |
| Insulation class | H |
| Power supply cable | 4x2.5mm2 - 5 m |
| Welding | |
| Adjustment range | 3A-270A |
| Duty cycle MMA - 40 °C |
40% - 270A
60% - 255A
100% - 240A |
| Duty cycle MMA - 25 °C |
100% - 270A |
| MMA electrode synergy (270 RC) |
yes
|
| Function VRD (270 RC) |
yes
|
| Remote control combatible (270 RC) |
yes
|
