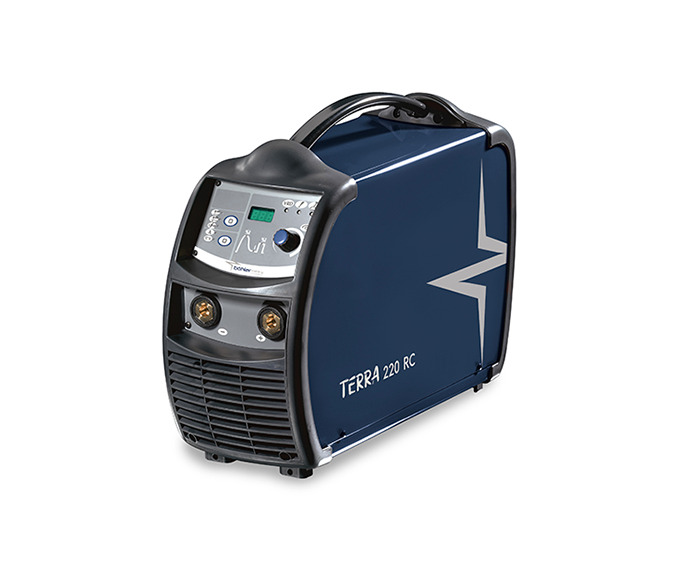

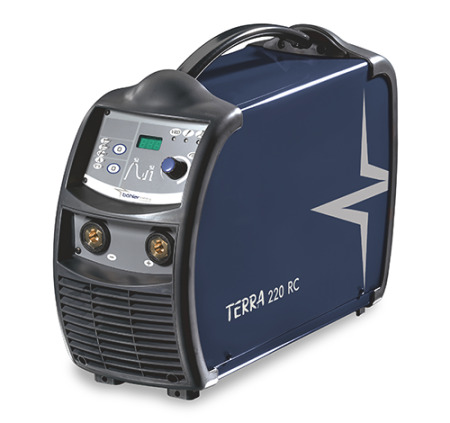

TERRA 220 RC

The TERRA 220 RC product line are welding machines designed to offer the best welding characteristics in terms of arc dynamics with the capacity to weld any material with ease.

  • MMA - TIG DC Lift
  • Three-phase 3x400V
  • Inverter technology
  • Compact and light-weight
  • Remote Control compatible
  • Hot Start / Arc Force / AntiSticking functions
  • 220A@30% (40 °C)
  • 11.3 kg
  • General
    Welding processs MMA - TIG DC Lift
    Materials Carbon steels - Stainless Steels - Cast irons - Aluminium
    Dimensions 410x150x330 mm
    Weight 11.3 kg
    Power supply
    Voltage (50/60 Hz) 3x400V±15%
    Maximum input power 11.0 kVA
    Maximum input current 15.9A
    Efficiency 85%
    Slow blow line fuse 10A
    Open circuit voltage 70Vdc
    IP protection rate  IP23S
    Insulation class H
    Power supply cable 4x2.5mm2 - 5 m
    Welding
    Adjustment range 3A-220A
    Duty cycle
    MMA - 40 °C
    30% - 220A
    60% - 170A
    100% - 150A
    Duty cycle
    MMA - 25 °C
    50% - 220A
    100% - 160A
    MMA electrode synergy (220 RC)
    yes
    Function VRD (220 RC)
    yes
    Remote control combatible (220 RC)
    yes
    • Light job shop fabrication
    • Medium-heavy job shop fabrication
    • Building sites
    • Shipyards
    • Plants machinery construction
    • Oil refinery plants construction
    • Repair and overhaul
    • Outdoor working
    • Handicraft working
    • Vehicle bodywork repair
    • Building
    • Installers
    • Blacksmiths
    • Workshops
    • New generation advanced inverter technology power source for high speed dynamic arc control and superior welding performance
    • Heavy duty and enviromental conditions, high service life
    • Reduced dimensions and compact construction
    • Software based controls can be upgraded as new features become available
    • High temperature, shockproof, abrasion resistant plastic case
    • Air flow ducting and fully encapsulated PC board to avoid dust contamination
    • Excellent performances also with long power supply extension cables
    • Full digital and user-friendly control panel
    • Welding parameters digital display
    • Last job setting auto-storage at switch-off
    • Ideal for stick welding with multiple types of popular electrodes
    • Built-in adjustable arc control features (hot start, arc force, antisticking)
    • Reduced electromagnetic interference with lift start TIG welding
    • Remote control compatible
    • Current socket (panel) 50/70mm²
