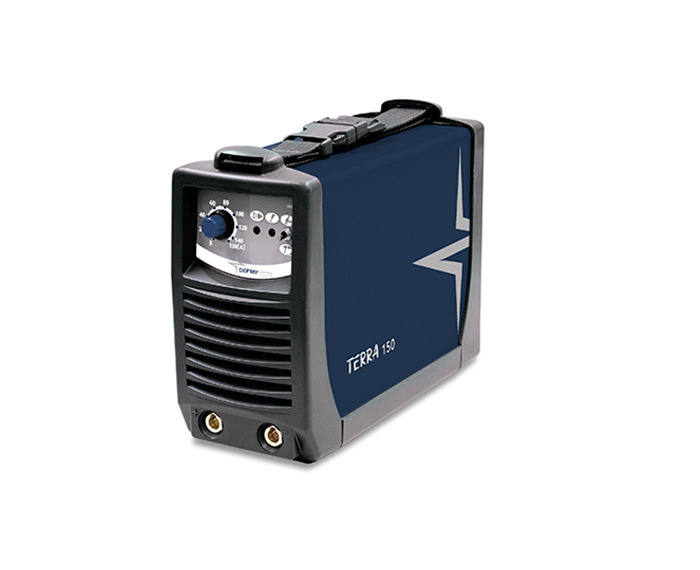

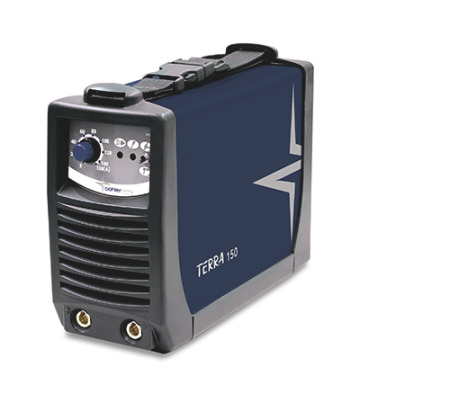

TERRA 150

TERRA 150 controls the current in a perfectly linear manner, obtaining a particularly stable and accurate welding arc, quality welding and a general improvement in power source performance. This innovative technology has permitted the use of particularly small components, resulting in extremely compact power sources in terms of dimensions and weight.

  • MMA – TIG DC Lift
  • Single-phase 1x230V
  • Inverter technology
  • Light-weight and professional
  • Hot Start / Arc Force / AntiSticking functions
  • 150A@30% (40 °C)
  • 4.1 kg
  • General
    Welding processs MMA - TIG DC Lift
    Materials Carbon steels - Stainless Steels - Cast irons
    Dimensions 280x110x220 m
    Weight 4.1 kg
    Power supply
    Voltage (50/60 Hz) 1x230±15%
    Maximum input power 7.5 kVA
    Maximum input current 33.0A
    Efficiency 83%
    Slow blow line fuse 16A
    Open circuit voltage 78Vdc
    IP protection rate  IP23S
    Insulation class H
    Power supply cable 3x1.5mm2 - 2 m
    Welding
    Adjustment range 5A-150A
    Duty cycle
    MMA - 40 °C
    30% - 150A
    60% - 120A
    100% - 100A
    • Light job shop fabrication
    • Building sites
    • Repair and overhaul
    • Handicraft working
    • Vehicle bodywork repair
    • Building
    • Plumbing
    • Installers
    • Blacksmiths
    • Electricians
    • Advanced inverter technology power source for superior arc performance
    • Heavy duty and enviromental conditions, high service life
    • Reduced dimensions and compact construction
    • High temperature, shockproof, abrasion resistant plastic case
    • Air flow ducting and fully encapsulated PC board to avoid dust contamination
    • Excellent performances also with long power supply extension cables
    • Ideal for stick welding with multiple types of popular electrodes
    • Built-in adjustable arc control features (hot start, arc force, antisticking)
    • Reduced electromagnetic interference with lift start TIG welding
    • Current socket (panel) 25mm²

Accessories
