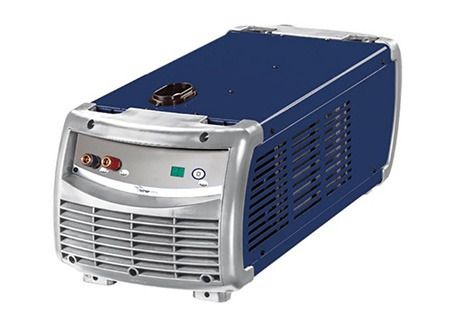

Cooling Units

The Böhler Welding cooling units are the ideal complement to the URANOS and TERRA equipment. The power source manages the cooling unit to suit its actual cooling requirements. Coolant connectors are available at the front and back of the unit.

Customers like it because:

  • Rotary pump with low noise emission
  • Cooling liquid circulation control device
  • LED display showing the temperature of the liquid

WU 130











Dimensions  480x190x180 mm
Weight 8.8 kg
Power 0.7 kW
Content 2.0 l
IP IP23S
Supply 48 Vdc

WU 230









Dimensions  660x240x220 mm
Weight 12 kg
Power 1.0 kW
Content 3.0 l
IP IP23S
Supply 1x400 Vac

WU 232









Dimensions  660x240x220 mm
Weight 13.4 kg
Power 1.0 kW
Content 3.0 l
IP IP23S
Supply 1x230/1x400 Vac

WU 330









Dimensions  705x305x250 mm
Weight 15 kg
Power 1.0 kW
Content 5.5 l
IP IP23S
Supply 1x400 Vac

WU 430









Dimensions  705x305x250 mm
Weight 16 kg
Power 1.25 kW
Content 5.5 l
IP IP23S
Supply 1x400 Vac

WU 1000









Dimensions 480x190x180 mm
Weight 8.8 kg
Power 0.6 kW
Content 2.0 l
IP IP23S
Supply 48 Vdc

WU 2000









Dimensions 660x240x220 mm
Weight 12.0 kg
Power 1.0 kW
Content 3.0 l
IP IP23S
Supply 360 Vdc

WU 3000









Dimensions 705x305x250 mm
Weight 13.0 kg
Power 1.4 kW
Content 5.5 l
IP IP23S
Supply 360 Vdc
