UNISTAR HR

Electro-hydraulic Point Setting System for Freight, Urban and Mixed Traffic.

UNISTAR HR

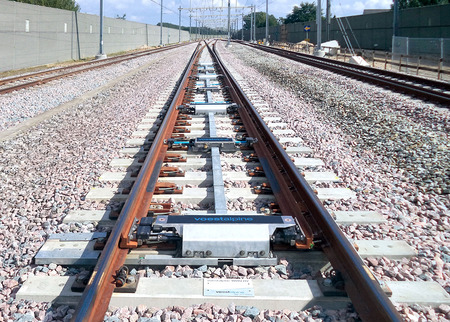

UNISTAR HR Setting levels
UNISTAR HR
Point machine with internal locking
Switch machine for railway and transit applications
Switch machine for railway and transit applications
Switch machine for railway and transit applications

The UNISTAR HR has already been installed in different climate zones. It meets the strictest safety requirements and among other specifications of Network Rail, German Railways (DB), ProRail and AREMA.
Separate modules of the Power and Drive/Locking/Detection (DLD) units are arranged in individual housings. This enables versatile installation options – All-in-One and Ready-to-Use.

The UNISTAR HR series also include

In combination with zentrak - Intelligent Diagnostic Platform, our intelligent turnout is an extremely effective tool for your maintenance team.

Worldwide under various environmental and operational conditions, the UNISTAR HR family proves market leading quality and reliability. All family members offer watertight and dust-tight boxes certified according to IP67. The unique and SIL4 certified design of UNISTAR HR is proving excellent reliability and highest availability in daily operation.

Technical description:

  • Motor unit and DLD (drive, locking, detection) unit are split into two individual IP67 certified boxes. This allows versatile installation.
  • The motor unit with hydraulic drive is capable of operating up to four DLD units installed in a turnout.
  • In case of distributed drives in a turnout, identical DLD units are applied.
  • The throw of each adjustment level can be individually adjusted

The connecting rods compensate for thermal expansion and contraction of the switch points without affecting the end position adjustments. Integrated pressure heads positively close the switch points against the stock rail.

Benefits:

  • Prepared for zentrak – Intelligent Diagnostic Platform
  • Equipped with Remote Vital Inspection (RVI) to extend inspection intervals
  • Low Life-Cycle Costs
  • Operation of turnouts with and without stretcher bars (track rods)
  • One drive serves up to four setting levels
  • Operation of swing nose crossings (movable point frogs)
  • Reduced track downtime
  • Short and sturdy connecting rods with thermal expansion compensation
  • Low weight of components, no lifting gear required for installation

Technical characteristics of UNISTAR HR:

Feature Value
Turnout Type Vignol
Minimum gauge of the turnout (mm) 1435
Throw range (mm) 60 -160
Main dimensions (mm) IP67: 1000 x 290 x 174 (DLD unit), 751x361x200 (power unit)
IP68: 800 x 354 x 188 (DLD unit), 860 x 395 x 197 (power unit)
Overall mass (depending on protection class) DLD unit approx. 80 kg, Power unit approx. 60 kg
Temperature range, max. humidity -40°C - +80°C, tested for 95% rel humidity
Safety level/ class SIL 4 according to DIN EN 50126, 50128 and 50129
Protection class IP67 / IP68
Fixation to track Stock Rail Fixation / Sleeper Fixation
Housing Material Aluminium / Stainless steel
Locking system internal prism lock, trailable and non-trailable
Max. number of possible locking and setting units 4
Throw time 3 sec
Throw force up to 15 kN, adjustable
Holding Force up to 90 kN, adjustable
Power supply  24 - 750 V
Trailing speed 40 km/h
