UNISTAR COMPACT Point Setting System

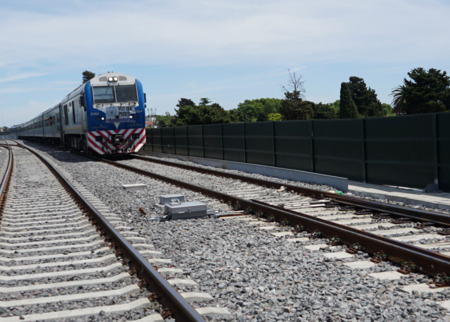

UNISTAR COMPACT is an electro-hydraulic point machine for Freight, Urban and Mixed Traffic.

The electro-hydraulic UNISTAR COMPACT has drive, locking and setting mechanisms in one housing.
The connecting rods compensate for thermal expansion and contraction of the switch points without affecting the end position adjustments. Integrated pressure heads positively close the adjoining tongue against the stock rail.

The UNISTAR HR series also includes:

Worldwide under various environmental and operational conditions, the UNISTAR HR product series proves market leading quality and reliability. All family members offer wa-tertight and dust-tight boxes certified according to IP67.

Benefits:

Drive and locking unit are installed in a compact enclosure
One drive unit controls up to three setting levels
For narrow gauge
Only one interface to interlocking system even with several setting levels
Visible internal locking device
Adaptable to all interlocking systems

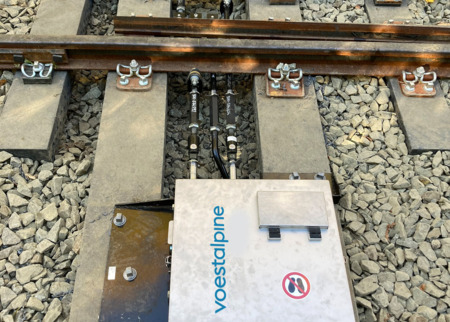

Utmost flexible for installation incl. installation on top of concrete sleepers
Vorbereitet für Zustandserfassung via zentrak – Intelligente Diagnoseplattform

Characteristics of UNISTAR COMPACT

Begriff	Wert
Turnout Type	Vignol
Gauge (mm)	from 1000
Throw range (mm)	60 - 220, adjustable
Main dimensions (LxWxH, mm)	890x650x283
Overall mass	approx. 140 kg
Temperature range, max. humidity	-40°C - +80°C, tested for 95% rel. humidity
Safety level	SIL 4
Protection class	IP67
Fixation to track	Sleeper Fixation Angles next to the Track
Housing Material	Aluminium
Locking system	internal prism lock, trailable and non-trailable
Max. number of possible locking and setting units	3
Throw time	2 - 5 sec.
Throw force	up to 15 kN
Holding Force	90 kN
Power supply	24 V - 750 V AC / DC
Trailing speed	40 km/h
