voestalpine Core Pins

core-pins

designed for pure performance

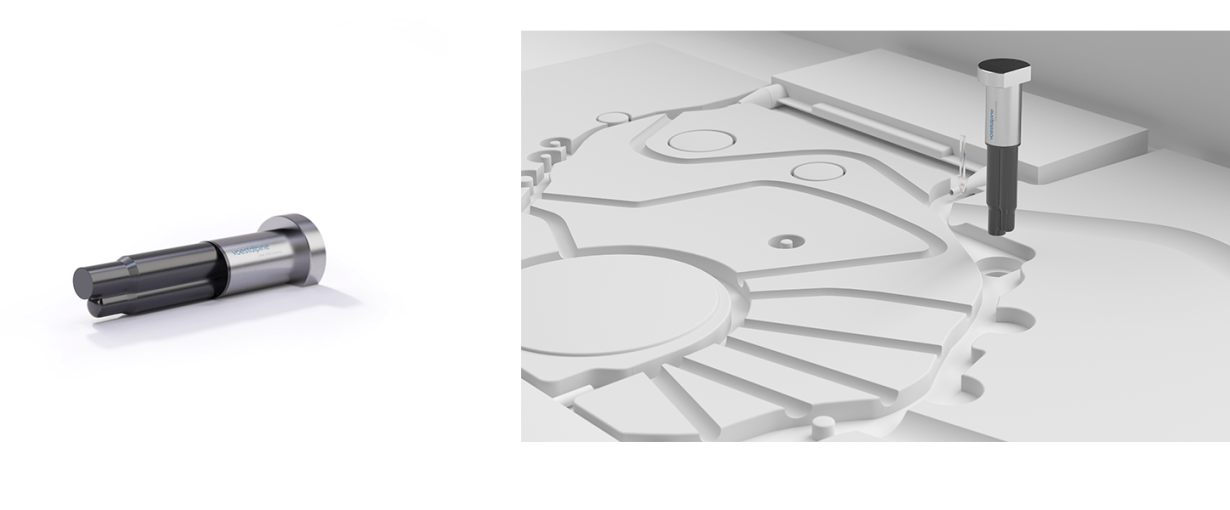

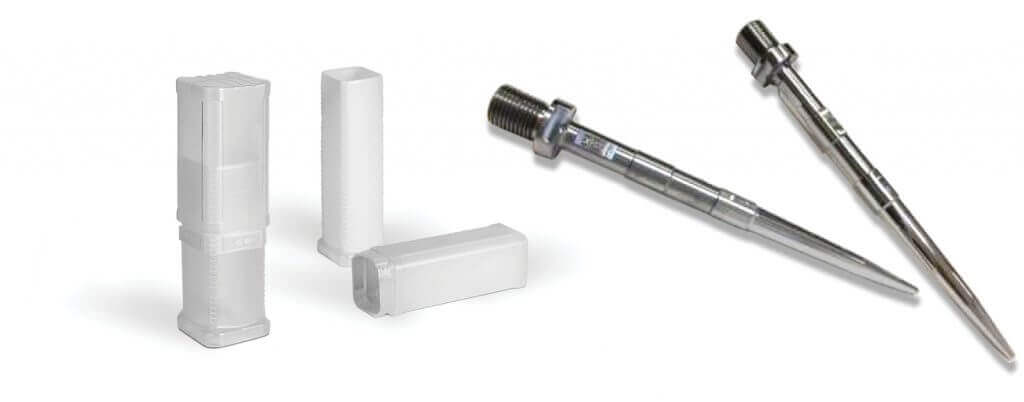

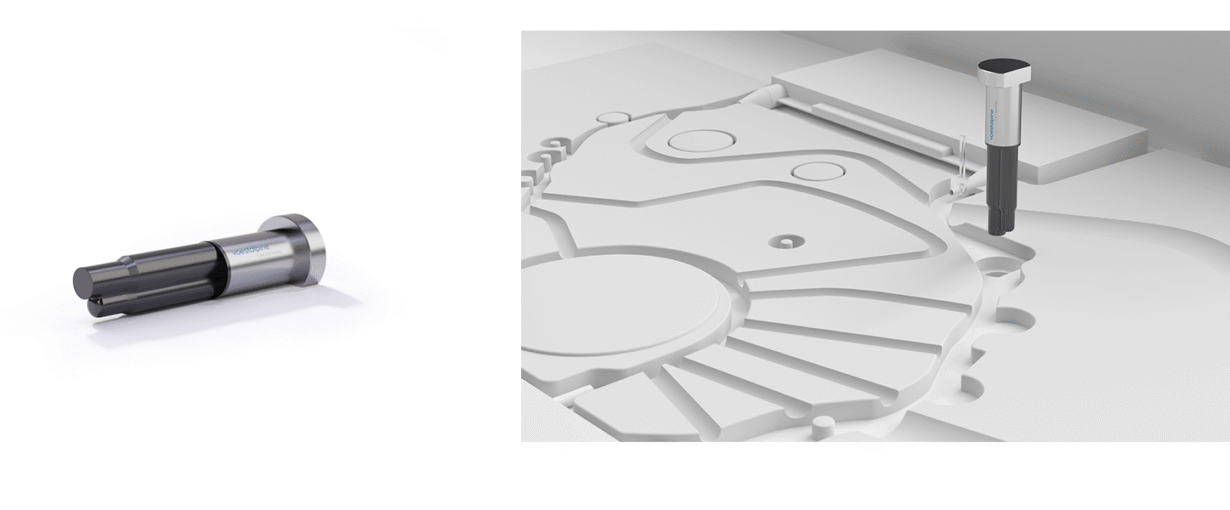

voestalpine Core Pins for die-casting applications are produced with premium materials by BÖHLER/Uddeholm. The finished products include voestalpine heat treatment, final machining, and eifeler PVD coating to deliver high-performance solutions that are ready for foundry use.

Our core pins offer outstanding high-temperature wear resistance, excellent ductility (gross crack resistance), premium tempering resistance, significant soldering reduction (with eifeler PVD coating), high heat-checking resistance as well as high thermal conductivity. These superior properties lead to reduced downtime and maintenance effort, thereby substantially increasing OEE. To meet the highest level of demand, these core pins are available with a hardness of up to 57 HRC.

  • Increased lifetime
  • Reduced maintenance and cleaning effort
  • Reduced downtime
  • Reduced scrap rate

Main Properties

  • Outstanding high-temperature wear resistance
  • Premium tempering resistance
  • Excellent ductility (safety against cracks)
  • High soldering resistance (with PVD coating)
  • High thermal conductivity

Technical Data

Material premium materials by BÖHLER/ Uddeholm
Hardness Level 50 – 57 HRC
PVD Coating voestalpine special coatings
Cooling (as required by customer) Applicable with and without integrated cooling

Applications

Die Casting

Manufacturing Process

Conventional

Technical Data

C Si Mn Cr Mo V
0.50 0.20 0.25 4.50 3.00 0.60

C Si Mn Cr Mo V
0.38 0.30 0.75 2.60 2.25 0.90
