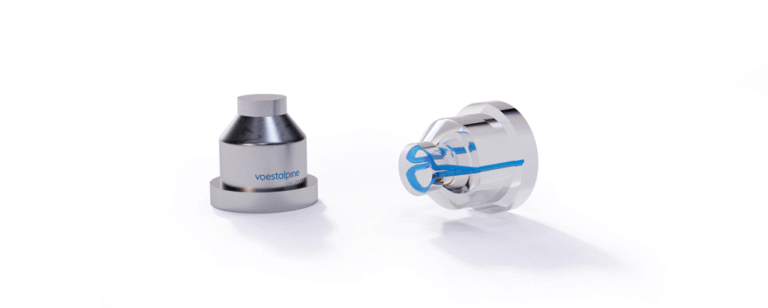

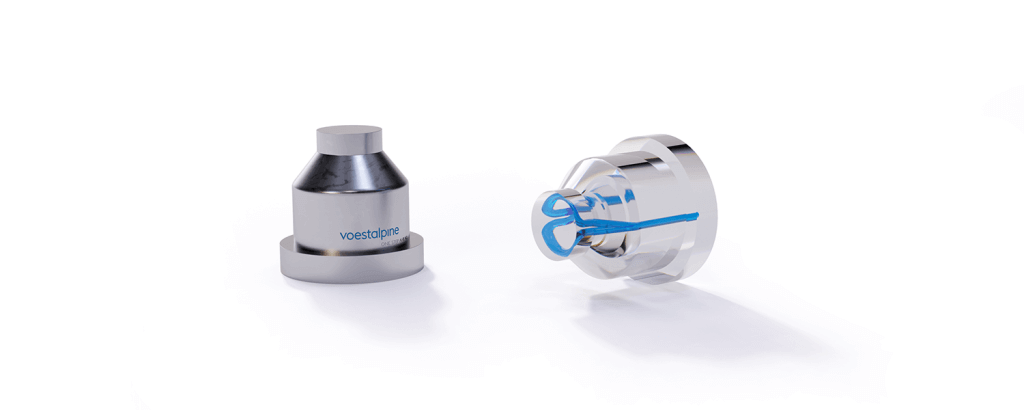

voestalpine Inserts for Food Container Lids

food-containter-lids-1024x410-1

designed for pure performance

Our Inserts for Food Container lids have optimized conformal cooling solutions, enabling our customers to run a stable and highly efficient production with a minimized cost per plastic part produced.

With more homogeneous temperature distribution, our inserts enable improved productivity and can reduce the overall cycle time by up to 15% compared to conventionally manufactured products.

Many producers of food container li

  • Improved cycle time up to 15% –> increased productivity
  • Homogeneous temperature distribution due to conformal cooling -> less warpage (improved part quality)
  • Higher wear resistance –> lifetime increase compared to copper beryllium inserts
  • High ductility –> safety against cracks
  • Corrosion resistant material –> improved crack resistance

Technical Data

Material premium materials by BÖHLER/Uddeholm
Hardness Level 49 – 53 HRC
PVD Coating (optional) voestalpine special coatings
Cooling voestalpine tailored conformal cooling

Applications

Plastic Injection Molding

Manufacturing Process

Additive Manufacturing

Technical Data

C Si Mn Cr Ni Mo Al
0.03 0.30 0.30 12.00 9.20 1.40 1.60

C Cr Ni Mo Al Ti
<0.02 12.20 10.00 1.00 0.60 1.00

Downloads

Inserts for food container lids
Inserts for food container lids Datasheet EN
