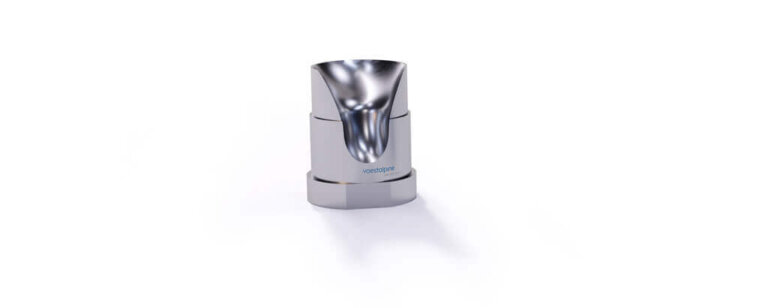

voestalpine Distributors – Conventional

con-distributer-1024x410-1

designed for pure performance

voestalpine Distributors for die-casting applications are produced with premium materials by BÖHLER/Uddeholm. Used mainly in two-plate die casting molds, these finished products include voestalpine heat treatment, final machining, and eifeler PVD coating to deliver high-performance solutions that are ready for foundry use.

Our distributors offer outstanding high-temperature wear resistance, excellent ductility (gross crack resistance), premium tempering resistance, significant soldering reduction (with eifeler PVD coating), high heat-checking resistance, as well as high thermal conductivity. These superior properties enable reduced maintenance effort and a more constant melt flow, thereby substantially increasing OEE.

  • Increased lifetime
  • Reduced maintenance effort
  • Reduced fluctuations in casting quality

Main Properties

  • Outstanding high-temperature wear resistance
  • Premium tempering resistance
  • Excellent ductility (safety against cracks)
  • High soldering resistance (with PVD coating)
  • High thermal conductivity

Technical Data

Material premium materials by BÖHLER/Uddeholm
Hardness Level 48 – 56 HRC
Cooling With or without conventional cooling

Applications

Die Casting

Manufacturing Process

Conventional

Technical Data

C Si Mn Cr Mo V
0.50 0.20 0.25 4.50 3.00 0.60

C Si Mn Cr Mo V
0.38 0.30 0.75 2.60 2.25 0.90

Downloads

conventional-distributor-rings-white-280x280-1
Datasheet Distributors Conventional EN
